LucidV2 Pitfalls
This notes contain a collection of common pitfalls and bugs when programming in HDL.
Setting Port Width using Parameter
When using parameters to define port sizes in Lucid/Verilog, it’s best to explicitly specify the width in a way that ensures proper computation.
For example:
const COLUMN_DIMENSION = 16d16 // 16 bits, value of d16
const ROW_DIMENSION = 16d16 // 16 bits, value of d16
When using the constant above to create dff or other module port size, it will be computed properly:
const PIXEL_COUNT = COLUMN_DIMENSION * ROW_DIMENSION // 16 bit width, chosen from the max width of the operands
dff led_encoding[PIXEL_COUNT](#INIT(1)) // PIXEL_COUNT is computed properly
When used to instantiate a module, correct port size will be computed:
// instantiation
index_reverser index_reverser(#COLUMN_DIMENSION(COLUMN_DIMENSION), #COLUMN_DIMENSION(ROW_DIMENSION)) // correct port is created
// module declaration, another file
module index_reverser#(
ROW_DIMENSION = 8 : ROW_DIMENSION > 1,
COLUMN_DIMENSION = 8 : COLUMN_DIMENSION > 1
) (
input input_address[$clog2(ROW_DIMENSION * COLUMN_DIMENSION)],
output output_address[$clog2(ROW_DIMENSION * COLUMN_DIMENSION)], // port width is proper
)
If you did not specify the width, then Vivado will follow the size of the maximum of the operands. The following error might happen:
const COLUMN_DIMENSION = 16 // computed as 5 bits
const ROW_DIMENSION = 16 // computed as 5 bits
const PIXEL_COUNT = COLUMN_DIMENSION * ROW_DIMENSION // computed as 5 bits, not enough to hold a value of 256
// using module
// since input_address port width is $clog2(ROW_DIMENSION * COLUMN_DIMENSION),
// and ROW_DIMENSION * COLUMN_DIMENSION is computed as 5 bits (following the max of the two operands),
// input address port is wrongly computed to be just $clog2(5) = 3 bits wide
index_reverser index_reverser(#COLUMN_DIMENSION(COLUMN_DIMENSION), #COLUMN_DIMENSION(ROW_DIMENSION))
If you use the wrong number of bits during computation, it will cause problems as well, for instance:
const COLUMN_DIMENSION = 5d16
const ROW_DIMENSION = 5d16
dff pixels[ROW_DIMENSION*COLUMN_DIMENSION] // only created 31-bit dff because the value 256 is too big to be represented in 5 bits
Ensure that each const is wide enough:
const COLUMN_DIMENSION = 16d16
const ROW_DIMENSION = 16d16
dff pixels[ROW_DIMENSION*COLUMN_DIMENSION] // created 256 bit dff
Instantiating modules in an array with parameters
Suppose we have the following module:
module adder #(
SIZE = 32 : SIZE > 1
)(
input a[SIZE],
input b[SIZE],
output out[SIZE],
output z,
output v,
output n
)
If we want to instantiate an array of 8 adders, the parameter dimension must match:
adder adder[8](#SIZE(8x{{16}}))
All modules in the array must have identically sized ports. The following cannot be done:
adder adder[8](#SIZE({8d1, 8d2, 8d3, 8d4, 8d5, 8d6, 8d7, 8d8}))
The above will cause the first adder to have an output port out[8], the second adder to have an output port out[7], and so on (same with port a and b) which is not allowed.
You also cannot instantiate a parameter array using constants as such:
const ADDER_SIZE = 16
adder adder[8](#SIZE(8x{{ADDER_SIZE}}))
This is because the width of constants is flexible. We cannot create an array in HDL with elements of varying size.

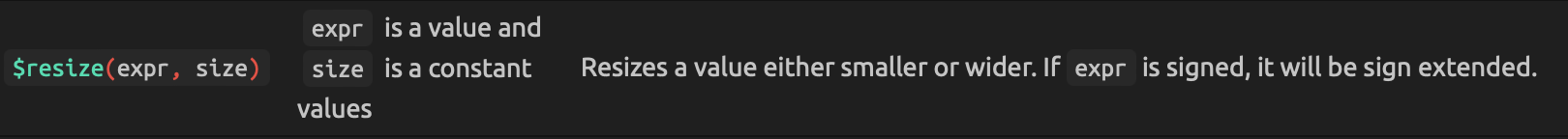

To fix this, use the $resize() function:
const ADDER_SIZE = 16
adder adder[8](#SIZE(8x{{$resize(ADDER_SIZE,16)}}))
The “16” does not refer to 16 bits, but to match the width of const 16 (4 bits). It is automatically computed for you.
Array Manipulation
If you instantiate a module as such as an array:
module adder #(
SIZE = 32 : SIZE > 1
)(
input a[SIZE],
input b[SIZE],
output out[SIZE],
output z,
output v,
output n
)
const ADDER_SIZE = 16
adder adder[8](#SIZE(8x{{$resize(ADDER_SIZE,16)}}))
The dimension of the ports changes too. For instance, this results in an error:
adder.a = 0
This is because the .a port is now expecting an 8 by 16 array. A correct way to set it is as such:
adder.a = 8x{{16b0}}
adder.b = {16d0, 16d1, 16d2, 16d3, 16d4, 16d5, 16d6, 16d7}
You can also use array concatenation if that suits your use case:
adder_array.a = 8x{{16b0}}
adder_array.b = c{ {16d3, 16d4, 16d5, 16d6, 16d7}, 3x{{16b0}} }
Using $width on structs
You cannot use the function $width(expr, dim) on structs.
For instance, lets say we have an array of COLORS as shown:
struct color { red[8], green[8], blue[8] }
const COLORS =
{
<color>(.red(250), .green(172), .blue(31)),
<color>(.red(20), .green(172), .blue(255)),
<color>(.red(10), .green(170), .blue(31)),
<color>(.red(0), .green(0), .blue(255)),
<color>(.red(80), .green(50), .blue(25)),
<color>(.red(90), .green(250), .blue(31)),
<color>(.red(100), .green(172), .blue(9)),
<color>(.red(28), .green(172), .blue(31))
}
The IDE will complain that you can’t use it to compute the first dimension of COLORS in bits, which is 3 bits (8). The following code will fail:
always{
// other code
io_led[0] = $width(COLORS)
}
Even if your constant is two dimensional:
const COLORS_2D =
{
{
<color>(.red(250), .green(172), .blue(31)),
<color>(.red(20), .green(172), .blue(255)),
<color>(.red(10), .green(170), .blue(31)),
<color>(.red(0), .green(0), .blue(255))
},
{
<color>(.red(80), .green(50), .blue(25)),
<color>(.red(90), .green(250), .blue(31)),
<color>(.red(100), .green(172), .blue(9)),
<color>(.red(28), .green(172), .blue(31))
}
}
This code will still fail:
always{
// other code
io_led[0] = $width(COLORS, 0)
}
$width only works for plain arrays:
enum States {
S1,
S2,
S3,
S4,
S5
}
always {
// other code
io_led[1] = $width(States) // will show 3, as 3 bits is the minimum bits required to encode 5 different values
}
Using Division by Non-Powers of 2
Most hardware division uses restoring or non-restoring algorithms, or iterative subtraction, which take multiple clock cycles. This introduces sequential logic into your combinational logic devices like your integer-based ALU, instead of keeping it purely combinational.
As a result, it can mess up your timing, increase your critical path delay, and make synthesis and debugging harder if you utilize this supposedly combinational module in an FSM. You will likely find that your project works on simulation but does not work on hardware.
If you need to divide by a power of 2, use right shifts instead:
a >> nis equivalent to \(\frac{a}{2^n}\), and is synthesized efficiently with simple wiring logic.
In short: stick to shifts for division, unless you really know what you’re doing and have the extra cycles (literally). Once you have done this, recompile the project and test.
