50.005 Computer System Engineering
Information Systems Technology and Design
Singapore University of Technology and Design
Natalie Agus (Summer 2026)

tetriSH

tetriSH is an alternative programming assignment track. It replaces PA1 and PA2 for accepted groups.

This is not a bonus-mark assignment. tetriSH replaces:

1. PA1: shell, daemon, process management, signals, and basic IPC
2. PA2: authenticated and confidential client-server communication

A group that takes tetriSH does not need to separately submit PA1 and PA2.

Instead, the group submits one integrated system that demonstrates the required PA1 and PA2 competencies through the tetriSH architecture. A polished game interface alone is not sufficient, and this is an assessment on systems engineering. You will be interviewed and asked to implement live features during the checkoff.

The project component remains capped at the same mark as the normal PA1 + PA2 path. There are no additional bonus marks for attempting tetriSH. However, there’s a prize for the top 2 groups.

Sections below are tagged so you can tell what is required and what is yours to design.

Required

This is a hard requirement. You will be graded on whether your code does this and no deviation is allowed.

Open design

A decision you must make and document neatly. We give you example approaches and you should pick, invent your own, but defend it in your README and at the live demo Q&A.

tl;dr

Indicate your interest to embark on this track by Week 3, Monday 6PM to your instructor. You may still withdraw by the end of Week 5 Friday, 6PM.

Once you’re committed to this track, here’s the rule: To avoid zero: baseline MVP must work To complete tetriSH properly: baseline MVP + Battle Royale must work To get good marks: system must be correct, clean, documented, and understood, also pass live QnA and live patching To win prize: full required system + strong engineering quality + flawless Q&A

Refer to the individual sections below for clarifications.

Overview

tetriSH is a single integrated project that combines PA1 (shell + daemon) and PA2 (authenticated, confidential client-server protocol) into one terminal-based Battle-Royale Tetris system written entirely in C.

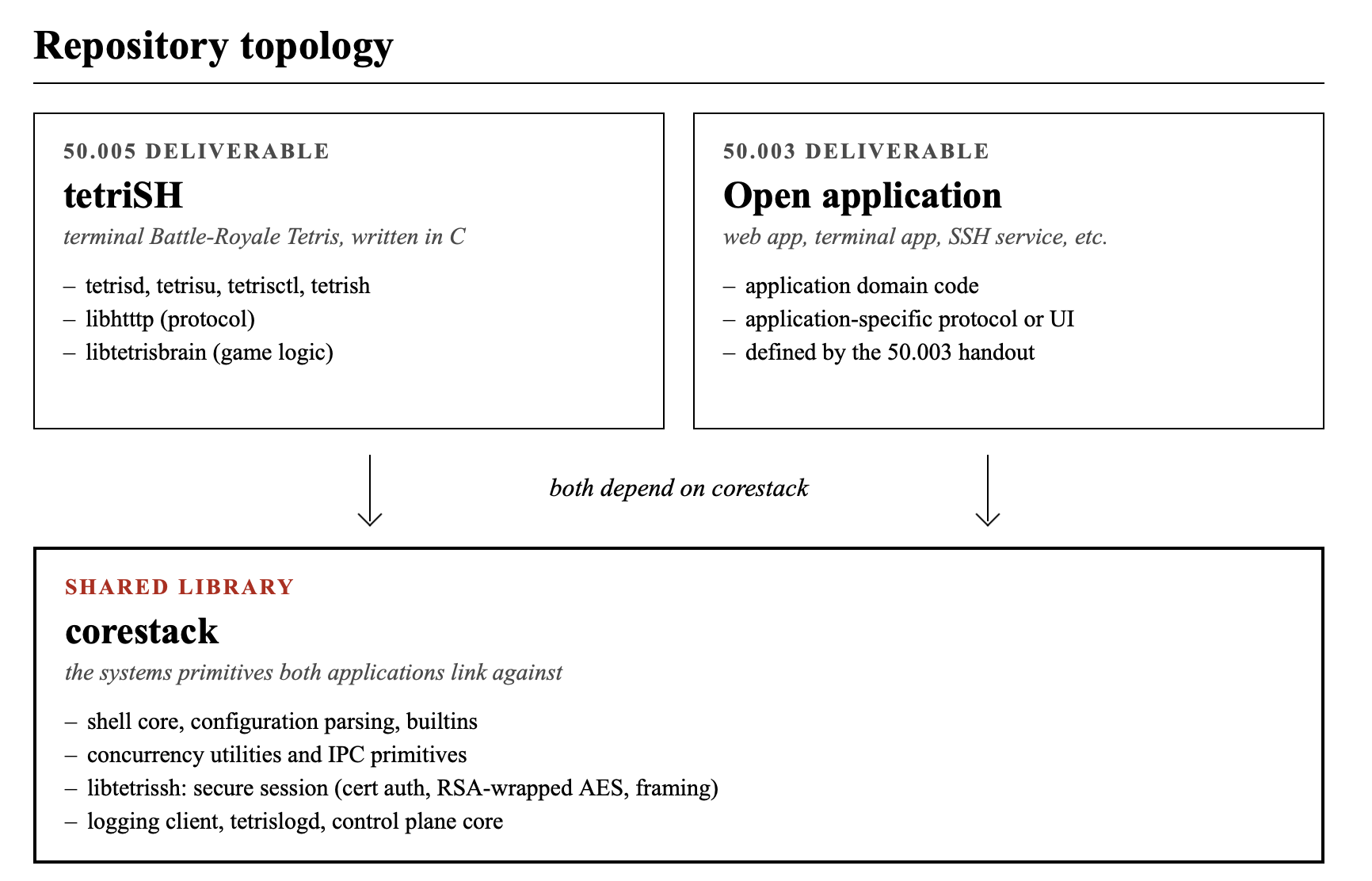

You should deliver five binaries and three libraries:

You may complete this challenge in groups of 3 only. This is an opt-in replacement for PA1 + PA2. Selection is competitive and is described in the later section below.

Project Constraints

This entire project must solely be terminal-based and it must be written in C.

Layering

Required

The system has exactly three layers above the kernel and you should implement the upper two.

+---------------------------------------------+
|  Application: HTTTP messages                 |
|  (HyperText Tetris Transfer Protocol)        |
+---------------------------------------------+
|  Secure session                              |
|  (cert auth, RSA-wrapped AES, framed)        |
+---------------------------------------------+
|  Transport: TCP via POSIX sockets            |
+---------------------------------------------+

TCP is provided by the kernel through the socket API. We are not here to reimplement reliability, ordering, retransmission, or congestion control as it is out of scope and not the point of this course.

Binaries

tetrish: the shell

Required

All PA1 shell behaviour: REPL, fork() plus execvp(), builtins (cd, help, exit, usage, env, setenv, unsetenv), .tetrishrc execution on startup, background process tracking and spawning using sys, dspawn, dcheck, no crashes on bad input.

tetrish is the entry point. From inside tetrish, the user can launch tetrisd and tetrislogd in the background, run tetrisctl queries (server side), or start tetrisu (client side) to play.

Open design

Whether you add tetrish-specific builtins (e.g. tetris-status as a wrapper around tetrisctl status, or tetris-up as a one-shot to launch the daemon and the logger together) is your call.

tetrisd: the game daemon

Required

The daemon must:

• Detach from the controlling terminal when launched in background from tetrish
• Bind to the TCP port configured in .tetrishrc
• Accept multiple concurrent clients
• Establish a secure session (via libtetrissh) with each client before any HTTTP traffic
• Parse and serialise HTTTP messages (via libhtttp)
• Maintain rooms with multiple players, run game logic (via libtetrisbrain), broadcast state
• Handle SIGTERM (graceful shutdown), SIGHUP (reload config), SIGUSR1 (dump state to log)
• Ignore SIGPIPE; detect broken connections via write() returning EPIPE
• Forward all log records to tetrislogd over IPC, with non-blocking enqueue from game-critical threads (see Section 7)
• Expose a control plane to tetrisctl (see Section 6)

tetrisd is the process that runs the server. It contains threads. The threads inside tetrisd should orchestrate the listeners, per-client handlers, per-room game ticks, the signal handler, and the channel out to tetrislogd. The libraries (libtetrissh, libhtttp, libtetrisbrain) should provide the heavy lifting.

Open design

The internal architecture of tetrisd is yours. We have three reference design for your perusal.

Thread-per-client, room-ticker per room

   listener_thread  ---->  client_thread (one per client)
                              |
                              v
                          room_t (mutex-protected)
                              ^
                              |
                          ticker_thread (one per active room)

   logshipper_thread (one)    signal_thread (one)
   ctl_listener_thread (one)

• Listener accept()s, hands the fd to a fresh client thread.
• Client thread calls into libtetrissh to do the handshake, then loops on HTTTP requests parsed by libhtttp.
• Each active room runs a ticker thread at fixed Hz that mutates board state (via libtetrisbrain) under the room mutex and enqueues STATE broadcasts to each player’s send queue.
• A dedicated log-shipper thread drains the in-process log buffer and forwards records to tetrislogd over IPC.

Tradeoffs

Thread count grows linearly with clients.

Event loop with epoll / kqueue

   main_thread (epoll loop)  <----  all client fds
                                    listener fd
                                    ctl socket fd
                                    timer fd (for room ticks)
                                    logshipper fd (out to tetrislogd)

   signal_thread (one)

• Single thread services all sockets via non-blocking I/O.
• Room ticks come from timerfd_create (Linux) or EVFILT_TIMER (BSD/macOS).
• Synchronisation problem mostly disappears because there is one mutator.

Tradeoffs

Scalable, but requires heavy synchronisation.

Master plus per-room worker processes

   master_process  ----fork()---->  room_worker (one per room)
        |                                  ^
        | shm_open + mmap                  | POSIX mq
        v                                  v
   shared lobby table                shared garbage queue (battle royale)

• Master accepts connections, spawns a worker process per room.
• File descriptors for clients are passed to workers via SCM_RIGHTS over a Unix socket.
• Global state (room directory, scoreboard) lives in shared memory.
• Cross-room events (battle royale garbage) flow through POSIX message queues.

Tradeoffs

This utilise IPC and is the most elegant solution but hard to debug.

tetrislogd

This is your logger daemon.

Required

tetrislogd is a separate process, not a thread inside tetrisd. It receives log records over an IPC channel and writes them to disk.

Required behaviour:

• Accept log records from tetrisd over IPC
• Write records to the log file specified in .tetrishrc
• Maintain a “dropped records” counter that increments when the IPC channel cannot keep up, and emit a summary line periodically (e.g. dropped 47 records in last 30s)
• Handle SIGTERM (flush buffered records, close file, exit) and SIGHUP (reopen log file, for log rotation)
• Survive a tetrisd restart without dying (i.e. accept reconnections, do not exit when its IPC peer disappears)

The reason why this should be a separate process is because:

1. Separation of failure domains: A bug in the logger (file system full, slow disk, etc.) does not bring down the game daemon. The game keeps playing even if logs are momentarily lost.
2. Real IPC requirement: This forces a real producer-consumer IPC channel between tetrisd and tetrislogd, exercising the OS chapter on IPC in a non-trivial way. Good to challenge yourself.
3. Production realism: This is how systemd-journald and rsyslogd work. Daemons forward log records via a socket; the logger is its own process.

Open design

The IPC mechanism between tetrisd and tetrislogd is yours. Reasonable options:

• Unix domain socket (datagram or stream, most flexible): reconnect logic must be written on tetrisd side if tetrislogd restarts.
• POSIX message queue (mq_open): built-in bounded buffer, drop policy is explicit.
• Named pipe (FIFO): simplest in code but need careful lifecycle handling because there’s no reconnection
• Shared memory ring buffer plus a notification channel: highest performance but hardest to debug and get right.

Wire format on the channel (line-based, length-prefixed binary, JSON, custom) is yours and you should document it properly.

Open design (lifecycle)

Whether tetrislogd is launched by tetrish independently (user types tetrislogd & then tetrisd &), or tetrisd spawns tetrislogd automatically, or some other arrangement. Document the startup sequence in your README.

tetrisctl

This is the admin CLI of your system.

Required

tetrisctl is a separate binary that runs administrative actions against a running tetrisd. At minimum it must support a status query and a graceful shutdown trigger. The channel it uses must be a real IPC mechanism, not a network connection to the public TCP port.

The control plane must remain available even when the public TCP listener is saturated.

Open design

The additional commands you offer here, the IPC mechanism (Unix domain socket, named pipe, POSIX message queue, signals plus state files, or a combination), and the wire format on that channel follows HTTTP, and it is fixed. See this section for details. Document whatever additional things you add for tetrisctl in your README.

Useful additional commands you may consider: rooms, players, kick <player>, reload (often implemented as sending SIGHUP to tetrisd), log-level <level> (forwards to tetrislogd), dropped-logs (queries the dropped-records counter from tetrislogd). None are mandatory.

tetrisu

This binary is the game client.

Required

Terminal-based. Must:

• Connect via TCP, complete the secure session handshake (via libtetrissh)
• Send HTTTP requests for game actions (via libhtttp)
• Receive and render server-pushed STATE frames
• Handle keyboard input non-blocking (so it can read input and network simultaneously)
• Exit cleanly on q or SIGINT

Open design

Rendering technique: raw ANSI escape codes, ncurses, or anything else that renders in a terminal. You are free to determine the key bindings beyond the basics or whether the client supports reconnection.

Libraries

The libraries are the durable, testable, reusable parts of the codebase. They are statically linked into the binaries that need them. Each library has one responsibility and you must stick to clean coding practice in this project.

libtetrissh

This library implements the secure session handshake between client and server.

Required

Every byte of HTTTP traffic flows inside an authenticated, confidential session established at connection time. The session protocol follows the PA2 pattern:

1. Client connects, sends a fresh nonce.
2. Server sends its X.509 certificate.
3. Client verifies the certificate against the bundled CA (cacsertificate.crt).
4. Server signs the client nonce with its private key (RSA-PSS).
5. Client verifies the signature using the public key from the certificate.
6. Client generates a 32-byte AES-256 session key, RSA-OAEP encrypts it with the server’s public key, sends it.
7. From this point on, every frame is [4-byte big-endian length][AES ciphertext] carrying one HTTTP message.

Frame size limit: 64 KiB. Larger HTTTP messages must be split by the application or rejected with 413 Payload Too Large.

Cryptographic primitives come from PA2’s common.c. You are not allowed to modify common.c or use any cryptographic library other than OpenSSL.

libtetrissh is linked into tetrisd (server-side handshake) and tetrisu (client-side handshake). Linking the same library into both ends prevents protocol drift between client and server.

Open design

The shape of the API. An easy API would be something like: session_handshake_server(), session_handshake_client(), session_send(), session_recv(), session_close(). The exact signatures, the data structure that holds session state, error reporting conventions are yours to determine.

libhtttp

This is the HTTTP protocol library.

Required

libhtttp parses incoming HTTTP messages and serialises outgoing ones. Both tetrisd and tetrisu should link against it.

The wire format is fixed and details are described the section below. libhtttp must conform to it exactly.

libhtttp is made as a separate library:

1. Testability: The protocol parser can be unit-tested in isolation, without needing the daemon running or the client connected.
2. Reuse: The same parser code is used on both sides of the connection and there won’t be any drift (disagreement, outdated interface)
3. Separation of concerns: The dispatcher in tetrisd reasons in terms of parsed messages, not bytes. The renderer in tetrisu reasons in terms of STATE structures, not strings. They belong in two different level of abstraction.

Open design

You can freely design: whether parsing is one-shot (“here is a buffer, give me a parsed message”) or streaming (“feed me bytes, tell me when a message is complete”), and whether the parsed-message data structure is heap-allocated, arena-allocated, or stack-friendly. The error codes and how they map to HTTTP status codes returned to the client is also yours to determine.

libtetrisbrain

This library implements the main Tetris game logic,

Required

libtetrisbrain implements the Tetris game rules. Pieces, rotation, gravity, line clear, scoring, lock delay, soft and hard drop, game over detection. It is pure logic with no I/O, no networking, no file system access and no side-effects.

tetrisd links against it for authoritative server-side game state. tetrisu may link against it for client-side prediction (optional) or just render server state directly.

It is common to have game logic separated out from the entire system supporting it as:

1. The game logic is non-trivial: we need to separate it from the rest of the system for ease of development and testing, and also grading.
2. Pure functions are testable: a board state plus a move produces a new board state, so you should have no mocking, no fixtures, and simply clean inputs and outputs.
3. Clean integration boundary: tetrisd knows what libtetrisbrain exposes and nothing about how it works internally. The brain can be rewritten without touching the daemon.

Open design

You can design the data structures for the board and pieces, the rotation system (SRS, ARS, classic Atari, your own invention), the scoring rules, the gravity curve, the lock delay rules. Please Document your choices.

Hypertext Tetris Transfer Protocol

This is an application-layer protocol.

Required

The following wire format is fixed.

Message grammar

REQUEST       ::= REQUEST-LINE CRLF *(HEADER CRLF) CRLF [BODY]
REQUEST-LINE  ::= METHOD SP PATH SP "HTTTP/1.0" CRLF
RESPONSE      ::= STATUS-LINE CRLF *(HEADER CRLF) CRLF [BODY]
STATUS-LINE   ::= "HTTTP/1.0" SP STATUS-CODE SP REASON-PHRASE CRLF
HEADER        ::= FIELD-NAME ":" SP FIELD-VALUE
SP            ::= " "
CRLF          ::= "\r\n"

We shall use HTTTP/1.0 literal.

Required methods

STATE is the only server-originated message. Clients must read these unprompted while interleaving with their own request-response cycles.

Open design

You may add methods (CHAT, PAUSE, WHISPER, SPECTATE, etc.). Document them. The live extension pool may ask you to add a method on the day; designing your libhtttp dispatcher to make that easy is a strategic choice.

Required status codes

Use HTTP-like status codes with their conventional meanings. The following must be reachable:

200, 201, 400, 401, 403, 404, 409, 429, 500.

You may add others if you wish.

Required headers

• Content-Length on every message with a body
• Content-Type: application/tetris-command on client requests with a body
• Content-Type: application/tetris-state on server STATE broadcasts
• Player-Id on every authenticated request
• Date on every response (RFC 1123 format)

The control plane

Required

tetrisctl and tetrisd communicate via a real IPC mechanism, not the public TCP socket and not function calls. The mechanism must be local-only.

The control plane must remain available even when the public TCP listener is congested. Imagine the server is being overwhelmed by client requests and you need to issue tetrisctl shutdown. It must still work.

Open design

Suggested mechanism: Unix domain socket, named pipe (FIFO), POSIX message queue, or signals plus a state file. Wire format on that channel: line-based, length-prefixed, JSON, or whatever else you want, just don’t forget to document it.

If you use Unix domain sockets, the path lives in .tetrishrc. If you use signals, document which signals trigger which actions and how state is returned to the user.

Logging

Required

All logging is performed by tetrislogd, the dedicated logger daemon explained above. tetrisd and other binaries forward log records to tetrislogd over IPC.

Game-critical threads (the listener, client handlers, room tickers) must not block on the logger. If the IPC channel is full, log records may be dropped, but the dropped count must be observable. tetrislogd exposes the dropped-records count, and tetrisd may also track its own local-side drops if it buffers internally.

Every connection event, secure session establishment, HTTTP request and response, room state change, and admin action must be logged with a timestamp.

Open design

The IPC mechanism between tetrisd and tetrislogd is free for you to design. So is the internal buffering inside tetrisd (a ring buffer drained by a dedicated shipper thread is one common pattern), the exact log line format and level tagging system and whether tetrisctl or tetrisu also log to tetrislogd (recommended, but your call).

A typical pipeline looks like this:

[client_thread]                                      [tetrislogd]
   log("connection from %s", ...)                          ^
       |                                                   |
       v                                                   |
   ring_buffer_push() (non-blocking, drops on full)        |
       |                                                   |
       v                                                   |
   [logshipper_thread] drains buffer                       |
       |                                                   |
       v                                                   |
   IPC send  --------------------------------------------->|
                                                           |
                                                  writes to disk

Why so complex?

This pattern matches production loggers (systemd-journald drops with Suppressed N messages lines when overwhelmed). Your system does not need to be identical, but the principles (non-blocking on the producer, observable drops, separate process for the writer) are required.

Concurrency

Required

• Your daemon must handle multiple concurrent clients correctly. You should not suffer from data races, torn reads, double frees.
• You must document your locking strategy in the README: which mutex protects which structure, and the global lock acquisition order.
• Code must conform to the documented order. We will read the code with the README open.
• Never hold a mutex across a blocking syscall.
• If you use fork() from a multi-threaded process, the child must call execve() immediately or use only async-signal-safe functions.

Open design

You can choose to implement it using threads vs processes vs hybrid. The Lock granularity is also up to you (the tradeoff is performance): one big lock, per-room locks, per-structure locks, lock-free queues. Synchronisation primitives used are also yours to pick: pthread_mutex, semaphores, condition variables, or anything else POSIX provides.

Battle Royale Mode

Battle Royale mode is a required part of tetriSH.

However, you should implement it only after the baseline Tetris system is working: independent terminal client, server-authoritative game state, secure session, HTTTP messages, logging, and control plane.

When a player clears N lines in a single move with N >= 2, those rows minus 1 are converted to garbage and inserted at the bottom of a random other player’s board in a different room.

Required

Battle Royale mode is required for tetriSH completion.

Garbage transfer between rooms must be server-side managed and must use a real IPC mechanism. Direct function call into another room’s state while holding its mutex from the source room’s thread does not count, even if it works.

Open design

Suggested mechanism: POSIX shared memory plus semaphore, POSIX message queue, named pipe, Unix domain socket carrying serialised events, or a combination.

Worked Example with shm

This is a worked example with shared memory plus message queue:

shm: garbage_pool[N]   <- ring of pending garbage events
mq:  /tetris-garbage   <- notification on new event

A room that clears lines writes the event to the shared ring, signals via the message queue. Other rooms read events targeted at them and inject garbage into their own boards under their own room mutex.

The .tetrishrc file

Required directives (the daemons cannot start without these):

• listen_port: TCP port for clients
• cert_path, key_path, ca_path: certificate paths
• log_path: path where tetrislogd writes log records
• log_ipc: address of the IPC channel between tetrisd and tetrislogd (the format depends on your chosen mechanism: a Unix socket path, an mq name, etc.)

The shell side requires no specific directives but must execute every line as it does in PA1.

Open design

Tunable directives such as max_rooms, max_players_per_room, tick_hz, log_level, the control plane address, the prompt string, custom aliases. Add what you need. Sensible defaults if a directive is absent.

File system layout

This is a suggested design. You are free to reorganise.

Open design

All paths must be configurable via .tetrishrc. Every path should be relative to the project root. No hard-coded path should be there.

project/
    bin/
        tetrish
        tetrisd
        tetrislogd
        tetrisctl
        tetrisu
    lib/
        libtetrissh.a
        libhtttp.a
        libtetrisbrain.a
    include/
        tetrissh.h
        htttp.h
        tetrisbrain.h
    auth/
        server.crt
        server.key
        cacsertificate.crt
        generate_keys.sh
    sample.tetrishrc
    var/
        log/                 (created at runtime)
        run/                 (sock, pid)
    src/
        tetrish/
        tetrisd/
        tetrislogd/
        tetrisctl/
        tetrisu/
        libtetrissh/
        libhtttp/
        libtetrisbrain/
    tests/
    Makefile
    README.md

Out of scope

There’s absolutely no need to implement all these. You will not gain special considerations.

• Reimplementing TCP, UDP, or any reliability protocol on top of UDP. Use TCP from the kernel.
• Implementing your own crypto primitives. Use OpenSSL via PA2’s common.c only.
• Web frontend, GUI client, mobile client. Terminal only.

Grading

This section explains how tetriSH is graded, how groups indicate that they are taking this track, what the live checkoff looks like and how the prize is awarded.

Students who complete tetriSH are assessed against the same broad learning objectives as PA1 and PA2, but through one larger integrated system.

The prize is separate from course marks.

Features to Demo

Baseline Tetris requirement

Baseline is a requirement to avoid zero

To pass the tetriSH track, the system must include a working baseline Tetris game. This does not need to be a polished commercial-quality Tetris implementation, but it must be playable enough to prove that the client, server, protocol, secure session, game logic, concurrency, and logging are integrated correctly. Failure to fulfil the baseline demo results in 0 marks for your both PA, so please consider carefully.

The baseline game must demonstrate:

1. a player can connect using tetrisu,
2. the client completes the secure session handshake before any HTTTP traffic,
3. the player can JOIN a room,
4. the player can START a game,
5. the server creates and maintains the game state,
6. a Tetris piece falls over time,
7. the player can move the piece left and right,
8. the player can rotate the piece,
9. the player can soft drop and hard drop,
10. pieces lock when they reach the bottom or collide with existing blocks,
11. completed lines are cleared,
12. the score or line count updates after line clears,
13. the game detects game over,
14. the server sends STATE messages to the client,
15. tetrisu renders the board in the terminal,
16. the client can quit cleanly,
17. the server logs game events through tetrislogd.

The server is authoritative. tetrisu may render state and collect keyboard input, but the real game state must live in tetrisd, using libtetrisbrain.

The client must not simply update its own local board and pretend the server accepted the move. Player commands must go through the full stack:

tetrisu
  -> libhtttp
  -> libtetrissh
  -> TCP socket
  -> tetrisd
  -> libtetrisbrain
  -> STATE response back to tetrisu

From the system architexture point of view, here’s what you should have:

1. tetrisd accepting multiple concurrent clients,
2. tetrisu rendering a user friendly playable terminal client,
3. libhtttp parsing and serialising HTTTP messages and handle error messages properly,
4. libtetrisbrain implementing core Tetris game logic efficiently,
5. tetrislogd receiving log records over IPC and writing them to disk in an organised manner (logs are labeled warning, debug, error, info, etc),
6. tetrisctl communicating with tetrisd over a local IPC control plane,
7. clean build instructions from a fresh checkout,
8. a README explaining architecture, concurrency, IPC choices, security assumptions, and known limitations.

Battle Royale Requirement

Battle Royale mode is not part of the baseline MVP demo, but it is still required for full tetriSH completion.

The baseline MVP exists to define the minimum integrated system that must work before Battle Royale can be meaningfully assessed. A group that cannot demonstrate the baseline MVP cannot pass tetriSH, even if some Battle Royale code exists.

Group formation and Week 3 indication

tetriSH is completed in groups of 3, the same group for your labs. By Monday, 6PM of Week 3, groups intending to take the tetriSH track must notify the instructor of your intent

You should submit a short document on eDimension detailing:

1. group member names,
2. declared role for each member,
3. a short architecture sketch,
4. intended thread or process model,
5. intended IPC mechanisms,
6. intended division of work,
7. repository link, if available.

If there are too many participants, for logistics reasons, your instructor has the right to filter the selection based on your proposal.

After Week 3 Monday 6PM, there’s no more chance to switch to this track.

Roles

Each group declares one member for each role. This should be decided up front. Here’s a sample:

Members may help one another. That is expected. However, each member must be able to answer live Q&A questions about their declared role.

The role declaration is not meant to stop collaboration but it is meant to make individual responsibility clear.

How grading works

The tetriSH project is graded as a group programming assignment. Group work management is expected to be professional, and hence the role declaration above.

All three members receive the same project mark. The grades are separated into 3 parts: functionality (5%), live extension (5%), live QnA (10%).

The grading focuses on whether the submitted system demonstrates the learning objectives of PA1 and PA2 through the tetriSH system. Battle Royale mode is part of the required tetriSH system. However, the baseline MVP is assessed first because it proves that the core shell, daemon, networking, security, protocol, logging, control plane, and server-authoritative game loop are working.

A group that cannot demonstrate the baseline MVP cannot rely on Battle Royale features to compensate for missing core systems behaviour. A group that completes only baseline MVP without Battle Royale feature will gain some marks but NOT full marks.

The project does not need to be the most feature-rich submission to receive full project marks. It must be correct, demonstrable, understandable, and aligned with the required systems objectives.

Commitment Policy

tetriSH is an optional alternative track. Groups may withdraw from tetriSH and return to the normal PA1 + PA2 path, but only before the fallback deadline.

The fallback deadline is Week 5, Friday, 6PM.

Before this deadline, a group must notify the instructor that it is withdrawing from tetriSH. The group will then complete PA1 and PA2 in the normal way and will be graded using the normal PA1 and PA2 rubrics.

There is no penalty for falling back before the deadline.

After the fallback deadline, the group is committed to the tetriSH track. The group must submit and demonstrate tetriSH at the final checkoff.

Failing to deliver the MVP during the final checkoff warrants 0 marks for both PA1 and PA2 components.

Live checkoff

Each tetriSH group must attend a live checkoff. Only tetriSH groups that can complete at least the MVP can schedule the checkoff. Otherwise, they would obtain zero regardless of the state of the code.

The live checkoff is used to verify that the submitted system works and that the group understands the system.

A typical checkoff is 60 to 90 minutes, depending on the number of groups.

The grades are separated into two segments: functionality and live extension + QnA.

Functionality (5%)

The group should be prepared to run:

1. tetrish,
2. tetrisd,
3. tetrislogd,
4. tetrisctl,
5. at least two tetrisu clients,
6. packet inspection or logging evidence showing that post-handshake traffic is encrypted using wireshark.

The demo must be reproducible from the submitted repository.

Two sections below. Take what you want.

Live Extension (5%)

The live extension tests whether you can navigate and modify your own codebase under time pressure. The purpose of this activity is to ensure that not only you “understand” what your code is doing but also own its architecture. It demonstrates long-term planning as well since clean architecture would make making these small changes easy.

Your group have approximately 20 minutes to implement a small extension on your running system, plus 5 minutes to walk the diff.

AI Tool Policy

No agentic or autonomous coding tool. Chat-based assistants are allowed, but no copy-pasting is allowed. Every line you accept from the AI must be one you can explain. Instructor can interrupt and ask why this line, and you should be able to explain fully.

Task pool

Here are the sample task pool. We may select from these OR ask you to implement adjacents.

Networking and Security (libhtttp, libtetrissh)

1. Add a new HTTTP method (e.g. PAUSE on /room/<id>), including parser handling, dispatch in tetrisd, a reachable 409 if the game is not active, and a log entry on every call.
2. Add a new required header (e.g. X-Client-Build) and reject any request missing it with the right status code.
3. Add a Retry-After header on every 429 response and have the client honour it.
4. Swap RSA-OAEP key wrapping for RSA-PKCS1v15 (or vice versa). Explain the security difference.
5. Change the symmetric key derivation: instead of the client generating a raw 32-byte AES key, derive it via HKDF-SHA256 over a fresh client nonce + server nonce, using primitives already exposed by common.c.
6. Add HMAC over the ciphertext frame (if your current frame has no auth tag) and have the receiver verify before decrypting.
7. Add per-session replay protection: a monotonic counter header on every request, server rejects out-of-order or duplicate counters with 400.
8. Reduce the AES key size from 256 to 128 bits and explain whether this materially changes your threat model.

Systems (tetrish, tetrisd, tetrislogd, tetrisctl)

1. Add a new tetrisctl subcommand that returns a structured snapshot of one room (player count, current piece, score, tick rate).
2. Add SIGUSR2 to tetrisd for a one-shot full state dump to log without restart.
3. Implement size-based log rotation in tetrislogd without dropping records during the rotation.
4. Add a per-IP connection limit configurable in .tetrishrc, enforced at accept(), rejection logged at warning level.
5. Implement tetrisctl drain: stop accepting new connections, let in-flight games finish, then exit cleanly on the next tetrisctl shutdown.
6. Add a kick <player> admin command that closes that player’s session and broadcasts the room update.
7. Swap your logger IPC mechanism from one option to another (e.g. Unix socket to POSIX message queue, or named pipe to socket). The drop counter must still work.
8. Add a reload path that re-reads .tetrishrc on SIGHUP and applies a subset of directives at runtime (e.g. log level, tick rate) without dropping connections.

Application and Integration (tetrisu, libtetrisbrain)

1. Add a hold-piece feature (one swap per piece, key-bound on the client, preview rendered).
2. Switch rotation system (SRS to classic, or whatever you implemented to a different one). Demonstrate a kick that worked before and not after, or vice versa.
3. Change the scoring rule for tetrises (four-line clear) and demonstrate it changing across two rounds.
4. Add a ghost piece projection at the landing position. Defend whether the server needs to send extra state for this.
5. Add a hard-drop preview line in the client.
6. Change Battle Royale targeting from “random other room” to “the room with the highest current score.” This is a real integration task: brain, broadcast, cross-room IPC.
7. Add a configurable starting level (faster initial gravity) read from .tetrishrc.
8. Add a “spectate” mode in the client that subscribes to a room without joining as a player.

Here’s the marking scheme: | Score | Outcome | | — | — | | 5 | Compiled, ran, behaved correctly, defended in walkthrough. | | 4 | Compiled and ran, minor messiness or one bug honestly acknowledged, defended. | | 3 | Compiled and ran but partially incorrect or incomplete. Direction was right. | | 2 | Did not compile at the bell, or compiled but did not behave. Some progress visible. | | 1 | Floundered. Could not orient in own codebase. | | 0 | Did not engage, used a forbidden tool, or accepted code that could not be explained. |

Live Q&A (10%)

This part of the checkoff is an extensive ownership test.

We want to validates that the submitted system is actually yours and that you understand it. Each member will be questioned on their declared role plus the integration boundary with the other roles. Other members may attend but may not answer, prompt, or signal during your turn.

You are allowed to refer to your own submitted code and lecture notes. You are also allowed to discuss among your team members. No AI tools or online searches are allowed.

Procedure

You will be having a conversation with your instructor for 30 minutes. Instructor is free to ask at most 6 questions in the style of the pool below. Follow-up questions and questions about the code e.g: “what does this line do? which functions call this?” don’t count either.

Question pool

Questions can be about anything in your project. Some examples by area are written below.

Concurrency and lifecycle

1. Walk me through what happens, line by line, when a client sends MOVE LEFT while the room ticker is mid-gravity. Which lock do you hold? In what order? Why?
2. I kill -SIGTERM your tetrisd while a game is in progress. Walk me through the shutdown path. Where does each thread or process learn it should exit?
3. Show me where you handle a slow client. What happens to the room if one client stops reading?
4. What is your global lock acquisition order? Show me one site that respects it and one that could deadlock if you got the order wrong.
5. Your tetrislogd IPC channel fills up. Show me the line that decides to drop. What is the drop counter, and how does it become visible?

Networking and security

1. Walk me through the handshake from accept() to the first encrypted HTTTP frame.
2. A man-in-the-middle replays a MOVE frame from earlier in the session. What stops it? Show me the code.
3. The client sends an HTTTP request with Content-Length larger than the actual body. Where do you detect this? What status code do you return?
4. What attack does RSA-PSS prevent that RSA-PKCS1v15 signing does not?
5. Show me where you free the X509* and EVP_PKEY* from the handshake. What happens if the handshake fails halfway?

Protocol and parsing

1. A client sends a request with \n line endings instead of \r\n. What happens?
2. A header has a value with a colon in it. Show me how your parser handles this.
3. Walk me through the path of a STATE broadcast from the room ticker to the client’s terminal.
4. Where is Date set on a response? Why there?
5. Two clients hit the same room with START simultaneously. What happens? Show me the code path.

IPC and control plane

1. I run tetrisctl shutdown while the public TCP listener is being flooded. Why does the control command still work?
2. Your tetrislogd dies. What does tetrisd do? Show me the reconnection logic.
3. Walk me through the wire format on your control plane channel. Show me the parser.

Application and game logic

1. Show me the line clear function. Walk me through it on a board where rows 18 and 20 are full.
2. Where does lock delay live? Walk me through a piece that is being held in place by repeated rotations.
3. A garbage row arrives from another room while the local ticker is mid-tick. What synchronises this?
4. Your client is rendering at 30 Hz but the server ticks at 60 Hz. What happens visually? Where in the code?

Code query

Instructor is free to ask about ANY line of submitted code, any directive in .tetrishrc, any entry in your README, any commit in your git history, any test in your test suite.

Multiplier scheme

Each group starts with a multiplier of 1.0 on their Q&A mark. We would then ask a question with a certain topic. Here’s what you’ll gain:

• Strong answer: specific, code-grounded, identifies the structure and the failure mode. No multiplier change.
• Weak answer: vague, generic, or detached from your actual code (the handout’s “we used a mutex to prevent race conditions” example). Multiplier applied: × 0.85.
• Cannot answer: silence, a wrong answer you concede, or “I don’t know.” Multiplier applied: × 0.7.

These multipliers would compound, not add.

Final Q&A mark is computed as 10% × multiplier.

Honesty discount

A simple “I don’t know, but here is how I’d find out in my code” is worth more than a confident wrong answer. Our instructor will make judgments and impose penalty accordingly.

Bullshitting compounds harder than admitting a gap. If you bluff and the instructor catches it on a follow-up, that question is treated as a “cannot answer”.

AI-generated code

Using AI tools is allowed. However, the submitted code must be understood and you must own the architecture. A group may use AI tools heavily and still do well, provided they read, test, debug, modify, and understand the generated code.

A group that submits working AI-generated code but cannot explain it may lose immediate 10% penalty and will not be eligible for the prize.

Prize eligibility

The prize is separate from course marks.

To be eligible for the prize, a group must:

1. complete the baseline MVP,
2. complete Battle Royale mode,
3. pass the live demo,
4. pass the live Q&A validation,
5. demonstrate that all three members understand their declared roles,
6. build successfully from a clean checkout,
7. have no academic integrity issues.

A group may receive project credit but still be ineligible for the prize if:

1. the implementation is too fragile to evaluate beyond the baseline,
2. the live Q&A shows weak understanding,
3. there are serious code ownership concerns,
4. Battle Royale is present but clearly hacked together without proper systems design.

Completing Battle Royale does not guarantee winning the prize. It only makes the group eligible for prize consideration.

Selection of Winning group

Among prize-eligible groups, the winning group is selected based on overall engineering quality. There’s no limit to what you can do, as long as you do not violate the constraints above.

The following criteria are considered:

The prize is not awarded purely for the most features. Basically, a smaller but cleaner and better-understood system may beat a larger but fragile system.

If no group meets the prize eligibility standard, the prize may be withheld.

Summary

This tetriSH project exist purely as a challenge to push your potential further. You are to embark on this solely if you are interested.

If you’re committed, it would replace PA1 and PA2 and carries the same course-mark ceiling as the normal PA1 + PA2 path. There are no bonus marks for this, only a chance at the prize.

Groups are to indicate interest by the end of Week 3 and the groups should consist of 3 members with declared roles. The live checkoff includes a demo, live patching & coding, and compulsory Q&A.

Note that the prize is separate from course marks.

Depending on the course budget, one or two winning group receives multiple Apple products worth approximately S$3,000.

Important Reminder

You are NOT allowed to modify common.h or common.c. These files contain all the cryptographic wrappers and socket helpers you need. This is the same rule as PA2.

Memory management in C: Every malloc‘d buffer, X509*, and EVP_PKEY* must be freed by the owner. Run your demo under valgrind; visible leaks at checkoff lose marks.

No HTTPS: You should implement the secure session yourself in libtetrissh over TCP. You are not using TLS, OpenSSL’s SSL_* API, or any reverse proxy. Cryptographic primitives come from common.c only.
