Virtual Machine

You can find the lecture video here. You can also click on each header to bring you to the section of the video covering the subtopic.

Overview

Suppose we have 10 processes running in our computer right now: Web Browser, Spotify, Telegram, etc (in fact, the number of running processes at any given time in a typical computer is more than 10). There has to be some kind of manager program that oversees the execution of these processes because we only have limited amount of resources: CPU cores, RAM size, cache size, etc. This manager program is called the Operating System. Specifically, the part of the OS that is responsible for process management is the operating system kernel.

The Operating System Kernel

The Operating System (OS) Kernel is a special program that is written to manage and oversees the execution of all other processes in system. It has the highest privilege in computer system, i.e: it can terminate any program, has access to all kinds of hardware resources (Physical Memory, I/O devices).

A few of its important role include memory management, I/O handling, and process scheduling.

There are many other roles of the OS Kernel that is not discussed here. We will learn more about them next term.

A Complete Process Context

In the previous chapter, we learned that each process has its own VA to PAmapping we call as part of a process context, hence allowing it to run on its own virtual memory.

Assigning a separate context for each process has two crucial benefits:

1. Allows timesharing among processes, hence user can multitask, i.e: switch the execution of multiple programs using a single core.

2. Allows each process to run in isolation – therefore every program can be written as if it has access to all memory, without considering where other programs reside.

The Kernel need to store more information about a process (and not just its VA to PA mapping), so that it can pause the execution and resume any of them later on without any conflict.

A more complete list of components that make up a process context are:

• Values of R0, R1, ... R30
• VA to PAmapping
• PC value
• Stack state
• Program (and shared code)
• Virtual I/O devices (console, etc)

In the Figure below, we illustrate N processes that are present in the system: P1, P2, ..., P3 – each having its own information:

These processes are isolated from one another, meaning that Pi cannot access (or corrupt) the memory space of other process Pj because each of them run on a separate virtual memory.

Writing an Operating System Kernel is not a trivial task as one has to take into consideration a plethora of issues (security, performance, memory management, scheduling, etc). However with its presence, it makes easier to write all other programs. It provides a layer of abstraction, allowing each program to run on a virtual machine, devoid of any knowledge about any other processes.

Building a Virtual Machine

Kernel Mode and User Mode

To support a safe virtual machine for each process, we need to establish the notion of dual mode system, that is a system that has a Kernel Mode (privileged mode) and a User Mode (non-privileged mode):

• The OS Kernel runs in full privilege mode called the Kernel Mode, and it oversees the execution of all processes in the computer system, handles real I/O devices, and emulate virtual I/O device for each process.

• All other programs do not have such privileged features like the kernel. We call these programs as running in non-privileged mode called the User Mode with limited access to any hardware resources:

  • No direct access to actual hardware
  • No direct access other process’ address space
  • No knowledge about other processes’ context and processor state

The Kernel will handle the need of these programs running in user mode for access to various hardware resources: access to I/O devices, interprocess communication, allocation/deallocation of shared memory space, etc.

This is a major benefit: programs can be easily written as if they have absolute access to all hardware resources (not just the physical memory), without having to worry about sharing them with other running processes.

OS Multiplexing and Context Switching

Multiplexing is a method of sharing the resources in a computer system for multiple running programs at the same time. The OS kernel handles the multiplexed execution of various running programs in a single CPU – switching between contexts so rapidly – so that for the users, the computer is seemingly able to run multiple processes in “parallel”.

The main idea of OS multiplexing is illustrated below using two processes P1 and P2, sharing a single system:

The ARROW illustrates the timeline of execution:

• At first, the CPU runs some task from P1.

• After some time t, imagine that a timed interrupt (caused by other asynchronous hardware, e.g: a timer) occurs. This causes the CPU to execute part of the kernel program that handles such asynchronous interrupt, hence pausing the execution of P1.

• This interrupt handler takes control of the CPU when hardware interrupt occurs, and saves the current states (PC, Registers, etc) of P1 to a dedicated space (Kernel Stack) in the Memory Unit (so that P1’s progress is not lost and can be resumed later on) before performing a “context switch”: 1. Load the states of P2 to the CPU (and also the required resources, mapping, etc), and 2. Resume the execution of P2.

  In practice, the interrupt handler will examine the cause of the asynchronous interrupt. In the event of periodic interrupt caused by a timer, the handler will delegate the task to the kernel scheduler whose job is to decide which process to run next, and prepare the necessary information / context to load this process back into the CPU so that the selected process may resume smoothly. When the scheduler returns to the handler, the handler resumes execution of the CPU by simply setting PC \(\leftarrow\) Reg[XP] - 4.

• P2 runs and progresses for some time t before another hardware interrupt occurs. The entire context switch process is repeated to pause P2, resume P1, and so forth.

The key technology that allows for OS Multiplexing is the asynchronous hardware interrupt.

We will simply call asynchronous interrupt as just “interrupt” for simplicity. A synchronous interrupt is called as “trap” instead (see the later chapters).

Hardware Support for OS Multiplexing

To allow for proper multiplexing, four things must be supported **in the hardware level**:

1. There has to be a way to asynchronously interrupt a currently running program periodically via hardware, since that program is currently using the CPU and will not stop voluntarily.

2. The hardware has to know how to direct the PC CPU to the right handler program when interrupt occurs.

3. Two execution modes in the system:

   • Kernel mode: that allows the CPU to have ultimate access to all hardware and data, so that it can perform crucial process management tasks such as “saving” the states (Register contents, stack, PC, etc) of the interrupted process (to be resumed safely later on).
   • User mode: a non-privileged mode that disallow programs to corrupt illegal memory space of other programs or hijack resources.

4. Other interrupts must be disabled when this process of “saving state” occurs (otherwise data will be lost).

\(\beta\) Asynchronous Interrupt Hardware

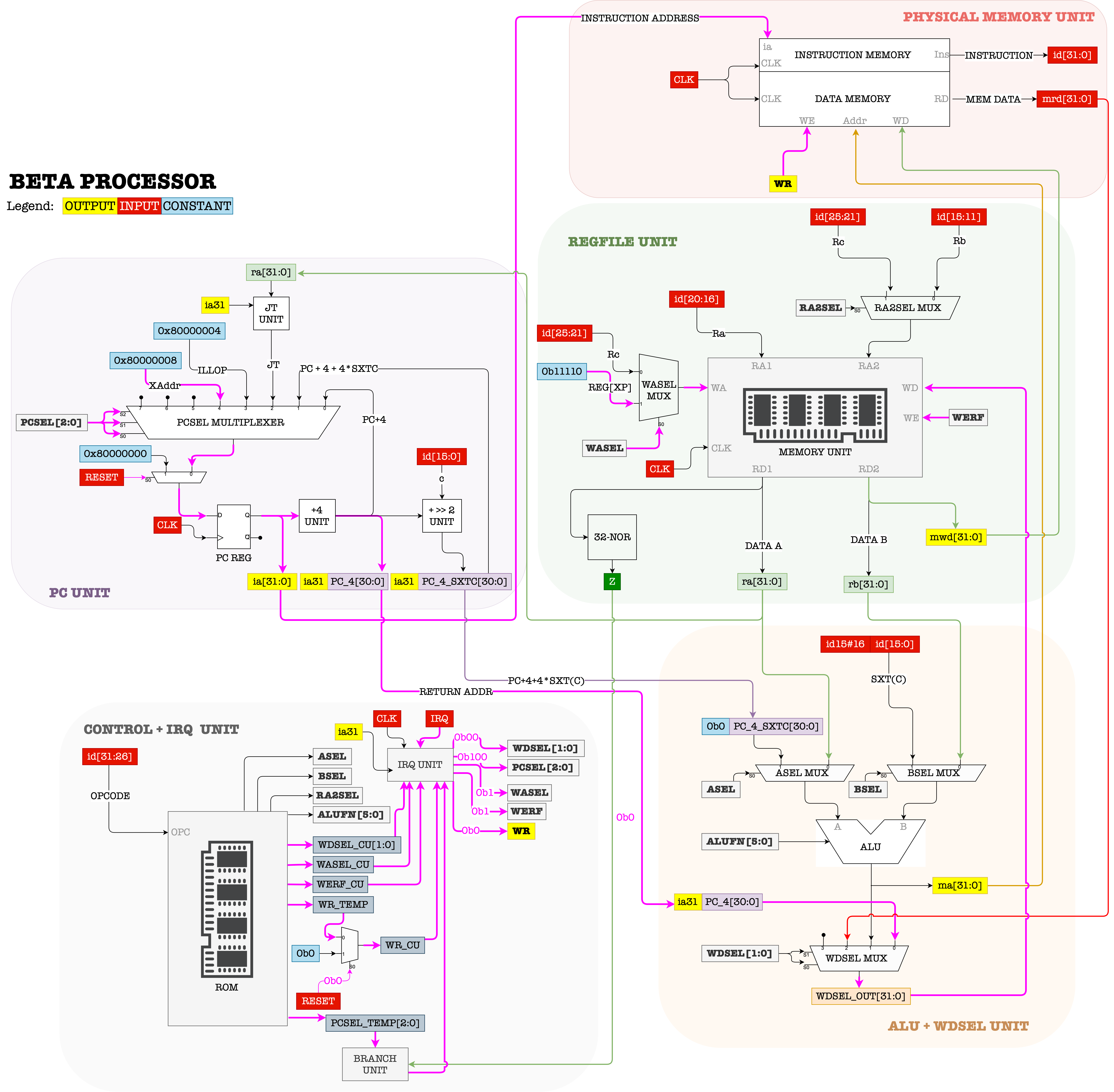

Recall the asynchronous interrupt datapath as shown in the figure below:

One of the inputs that is received by the Control Unit is IRQ (1-bit). In the event of interrupt, the IRQ value will be 1.

At each CLK cycle, the Control Unit always checks whether IRQ is 1 or 0.

Note that IRQ may turn to be 1 asynchronously, e.g: in the “middle” of a particular CPU CLK cycle. However the Control Unit is synchronised with CPU CLK. Therefore, this will only trigger an interrupt in the next CPU CLK tick.

• If IRQ==0, the Control Unit produces all control signals as dictated by OPCODE received.
• Else if IRQ==1, the Control Unit traps the PC onto the interrupt handler located at XAddr, by setting PCSEL value into 100; so that the PC points to XAddr in the next clock cycle.
  • At the same time, it stores the address of the next instruction (PC+4) at Register XP (R30).
  • R30 is a special register is always used to hold the return address in the event of interrupt (or illegal operation) so that the system knows how to resume the interrupted program later on.

A kernel scheduler will typically configure some system timer to fire at some interval. This timer runs asynchronously with the CPU, and sets the IRQ signal to 1 each time it fires.

The interrupt hardware configuration forces the PC CPU to execute the interrupt handler at XAddr in the next cycle each time the timer fires.

The register transfer language that describes what happens in the datapath when IRQ==1 is:

If (IRQ==1 && PC31 == 0):
	Reg[XP] <- PC + 4`
	PC <- Xaddr

Asynchronous Interrupt Handler

The asynchronous interrupt handler is located at XAddr, which is usually pre-determined memory address. In \(\beta\) CPU, XAddr is set at 0x8000 0008.

The first few instructions of the interrupt handler saves current process states (R0 to R30 contents, PC state, stack, and others) in process table.

Process table: a Kernel data structure that stores all the states of running processes in the machine. It lives in the Kernel memory space. The kernel keeps track on which process is currently scheduled to run in the CPU.

Then, the handler will figure out which specific service routine needs to be called to service the interrupt, e.g: scheduler, or I/O routines.

Afterwards, the service routine returns back to this interrupt handler. The handler finally sets PC \(\leftarrow\) Reg[XP]-4.

What is the value of Reg[XP]-4?

It depends. The service routine may or may not change the value of Reg[XP] before returning to the interrupt handler:

• If the value of Reg[XP] is unchanged, then the interrupted program resumes.
• Else, it means that the CPU executes another program.

In any case, Reg[XP]-4 contains the address of instruction that the CPU should execute when the interrupt handler returns.

Dual Mode Hardware Support

Since the OS Kernel is a program that manages the execution of all other processes in the system, it is crucial to restrict access to the Kernel for safety reasons.

That is, to prevent a normal program from jumping to the address in memory that contains Kernel code and “hack” the system.

This prevention is done via hardware.

Firstly, we need to establish some notion:

• We call the MSB (most significant bit) of the PC register as the Supervisor Bit.
• Whenever the PC executes any code in an address where its MSB is 1, it means that the CPU is running in the Kernel Mode.
• Otherwise, if the MSB of the content in PC Register MSB is 0, the CPU is said to be running in the User Mode.

That means we can divide the physical memory address space into two sections:

• User space: Addresses which MSB is 0: from 0x0000 0000 to 0x7FFF FFFF
• Kernel space: Addresses which MSB is 1: from 0x8000 0000 to 0xFFFF FFFF.

Kernel program and kernel data (privileged information, data structures, etc) are stored in the Kernel space. The rest of the program in the system live in the user space.

With this notion, it is easy to enforce restricted access to the kernel space:

• Programs running in user mode (PC31 == 0) can never branch or jump to instructions in the kernel space.

  Computations of next instruction address inBEQ, BNE, and JMP cannot change PC31 value from 0 to 1.

• Programs runing in user mode (PC31 == 0) can never load/store to data from/to the kernel space.

  Computations of addresses in LD, LDR and ST ignores the MSB.

• Entry to the kernel mode can only be done via restricted entry points. In \(\beta\), there are only three entry points:
  • Interrupts (setting PC to Xaddr: 0x8000 0008),
  • Illegal operations (setting PC to ILLOP: 0x8000 0004), or
  • Reset (setting PC to RESET: 0x8000 0000)

Reentrancy

When the CPU is in the kernel mode (PC31 == 1), i.e: handling an interrupt – it is important to consider whether or not we should allow interrupts to occur. Handlers which are interruptible are called re-entrant.

In \(\beta\) CPU, handlers are not re-entrant. Interrupts are disabled when it is in kernel mode:

• IRQ signal is ignored in the hardware when PC31 == 1

This means that while user programs are interruptible, kernel programs are not.

The reason behind disabling interrupt while being in the Kernel mode is to prevent the Kernel from corrupting itself.

Consider the scenario where the interrupt handler is in the middle of saving program states. Allowing another interrupt to occur in the middle of a save might cause data corruption.

The drawback to an uninterruptible kernel is that there’s no way to get the system to work again if the kernel is buggy and runs into an infinite loop, except via hard reset. The kernel program has to be written very carefully so as not to contain such bugs.

Timer Example

In this section, we illustrate an example of how a basic Kernel Scheduler works with the support of hardware.

Consider a \(\beta\) computer having a 16-bit counter (hardware) with frequency of 50 Hz that runs asynchronously with the CPU. This counter will be used as a timer for process scheduling.

Upon start-up, the Kernel can set the IRQ signal to point to the an arbitrary bit of the counter (assume that the pointer’s output is passed through a rising-edge detector so IRQ is 1 for 1 CPU clock cycle during a rising edge only).

For example, if it points to the 4\(^{th}\) bit:

• The value of the 4\(^{th}\) bit of the counter changes every \(0.02 \times 2^{3}\) = 0.16 seconds because it takes 0.02 seconds for the counter to increase by 1.
• There’s 0.32 seconds between rising edges.

This means that the IRQ value will be 1 once every 0.32 seconds.

If at first the CPU is executing instructions of Program P1:

1. After 0.32 seconds, IRQ turns to 1. This triggers an interrupt, and the control signals will cause the PC will execute the interrupt handler instruction at XAddr in the next cycle (and saving the supposed next instruction at Reg[XP]).

2. The handler at XAddr must save register states, branch to the scheduler, and resume the program after the scheduler returns. Note that Reg[XP] may or may not be the same as when before BR(scheduler_handler, LP) is executed.

X_addr : ST(R0, save_location) || save register states at an allocated address
ST(R1, save_location+4)
ST(R2, save_location+8)
ST(R3, save_location+12)
....
ST(R30, save_location+30*4)

CMOVE(kstack, SP) || use kernel stack
BR(scheduler_handler, LP) || branch to the scheduler

|| return instruction from scheduler
LD(save_location,R0) ||  restore register states
LD(save_location+4,R1)
...
LD(save_location+30*4, R30)

SUBC(XP, 4, XP) || Reduce XP by 4 to re-execute the instruction that was interrupted by the timer
JMP(XP)  || Resume execution

Although not written, save_location is a label, representing an address to store P1’s states.

Observation: in this simple example, the handler is written such that it always branches to the scheduler. In practice, there are many kinds of hardware interrupts (not just from a timer) that needs to be handled differently depending on its type. We will have a hands-on experience about this in Lab 8, and also in the next term.

Trap

A trap, is type of synchronous interrupt caused by an exceptional condition when the CPU executes an instruction, such as illegal operations, division by zero, invalid memory access, system calls etc.

This results in a switch to kernel mode via trap handler (e.g: PC \(\leftarrow\) ILLOP). The handler will examine the cause of the trap, and perform the appropriate action before (if possible) returning control to the originating process.

If it is not possible to return control to the originating processes, then the Kernel may choose to terminate it.

User processes do not have privileged access, meaning that they do not directly control the use of any hardware (I/O) devices, such as getting keyboard input, mouse click, perform disk saves, etc, without the help of the OS Kernel program.

This is because hardware devices are actually shared among all processes in the system, but their programs are written with complete disregard for other processes in the memory.

Therefore, user processes may utilise traps to synchronously interrupt themselves, and legally switch to the Kernel mode whenever they need access to the I/O devices (or other kernel services).

The event of transferring control of the CPU to OS Kernel synchronously / voluntarily when a process needs Kernel’s services is known as the system call (a.k.a: SVC, or supervisor call). This can be done by leaving the index of the requested service at Reg[R0] and executing a specific illegal operation.

There are many types of Kernel services, one of them includes read/write access from/to the I/O devices. They are typically indexed, and the process needs to leave the index of the needed system call in Reg[R0] before trapping itself to the Kernel Program. We will learn about Kernel services next term.

The datapath in the event of illegal operation is:

During this event,

• Control unit sets PCSEL = 011, and saves PC+4 into Reg[XP]
• The PC will execute the instruction at location ILLOP in the next cycle where the illegal operation handler resides.
• The illop handler will look at Reg[R0] and invoke the right service routine to provide the requested service.
  • Upon returning, the service routine will put its return the result in Reg[R0].
• The illop handler resumes the execution of the originating process:
  • Reg[XP] = Reg[XP] -4
  • JMP[XP]

One common scenario where a process running in user mode needs the Kernel service is when it asks for keyboard / mouse input, for example:

int c;
c = getchar();

The function getchar contains several instructions that perform a supervisor call in order to fetch any character input from the keyboard. When translated into assembly, the supervisor call is made by trapping the process into the illop handler, thus transferring CPU control to the Kernel so that it can fetch any character input from the keyboard, and resuming the process execution after the task is done.

The process stores the character input left at Reg[R0] by the Kernel into memory location c.

Summary

You may want to watch the post lecture videos here.

In summary, we have learned how the presence of OS Kernel and hardware support provide an abstraction for each running process, thus allowing them to run in an isolated manner; on their own virtual machine.

The Kernel manages the execution of all processes, as well as all I/O devices, and provides services to all these processes. There are two ways to transfer CPU control between user programs to kernel programs:

• Firstly, is through asynchronous interrupt: IRQ is set to 1
• Secondly, is through s ynchronous interrupt: when the process generates an exception hence trapping itself to the handler and enters Kernel mode.

During either case of interrupt, PC+4 is stored at Reg[XP] so that the system knows how to resume the process later on.

In \(\beta\) ISA, the Kernel is non-preemptive (the CPU cannot be interrupted while in Kernel Mode). It is designed as such to prevent security breach, data loss if it traps into itself while still being in the Kernel Mode, etc. However, careful writing and construction of the Kernel program is required.
